Follow the steps below to set up your Deco Total Home Mesh Wi-Fi System.
Select your connection type.
Select your connection type
For UFB connection
For VDSL/ADSL connection
For UFB connection with Voip
• Before you start, turn on Bluetooth on your mobile.
1. Download and install the Deco app
Scan the QR code below or go to Google Play or the Apple App Store to download the Deco app. Install the app on your Android or iOS smartphone or tablet.
here to download Deco app on Google Play.
here to download Deco app on Apple Store. 2. Sign up for TP-Link ID
Open the app and tap SIGN UP.
You need a TP-Link ID to use the Deco app. Put your email address and a preferred password and tap SIGN UP to create your ID.
An activation email will be sent out to the email address registered as TP-Link ID.
To complete the registration, click on the link with the email from TP-Link.
Return back to the Deco app to input the email address and the password and click the login button.
Once you have been logged in, you can begin the set up process.
3. Select your Deco device.
Select the M5/M1300 model from the options below.
4. Setting up Deco
Check to confirm that you have all of the components and click 'Next.'
5. Connecting to the router
For UFB, you do not need a separate modem. Click, 'I don't have a modem'.
6. Connect Deco to your ONT
Connect the Ethernet port on ONT to the Ethernet port on Deco using a LAN Cable. Connect the power cable and turn on both devices.
7. Search for a Deco

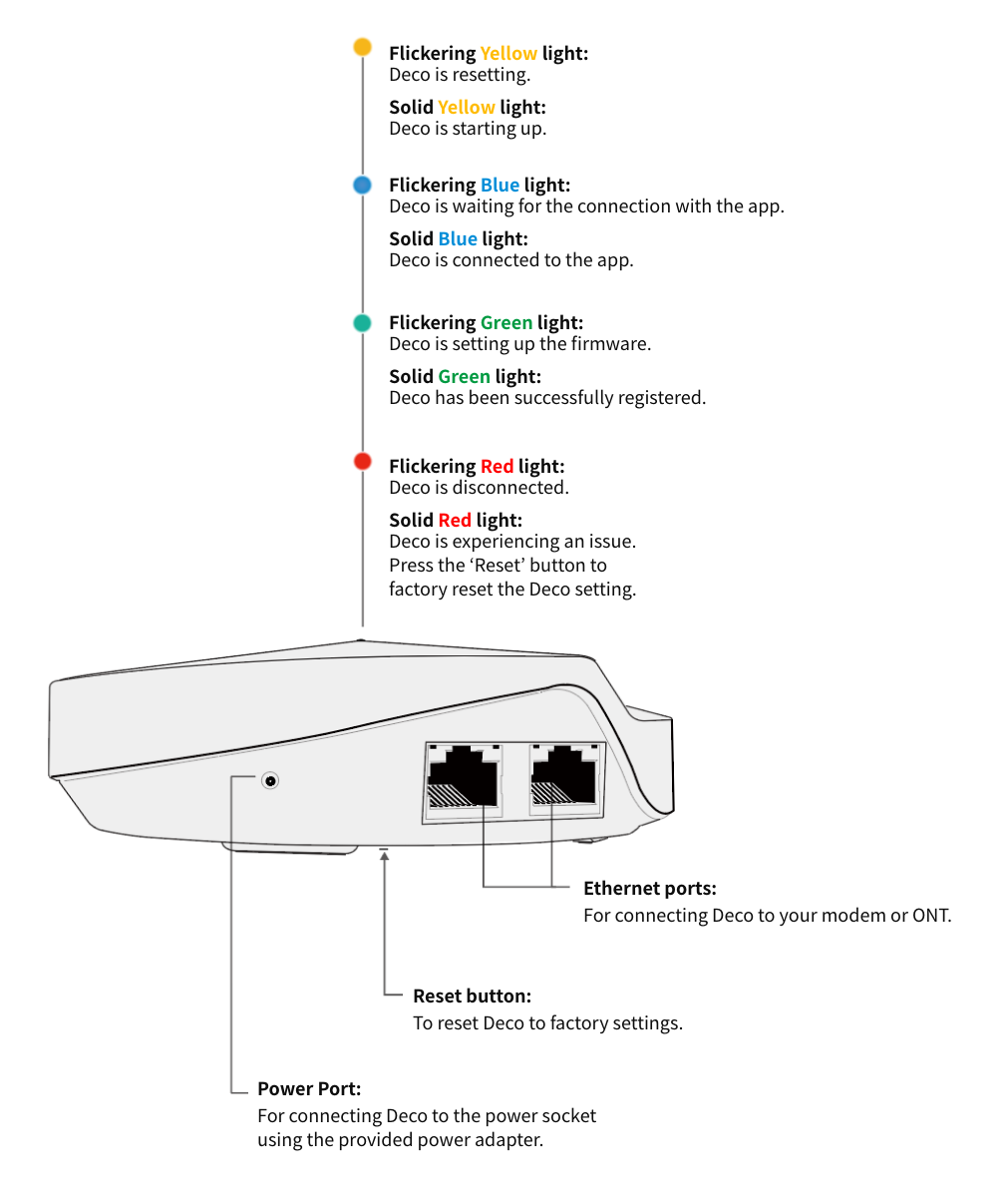

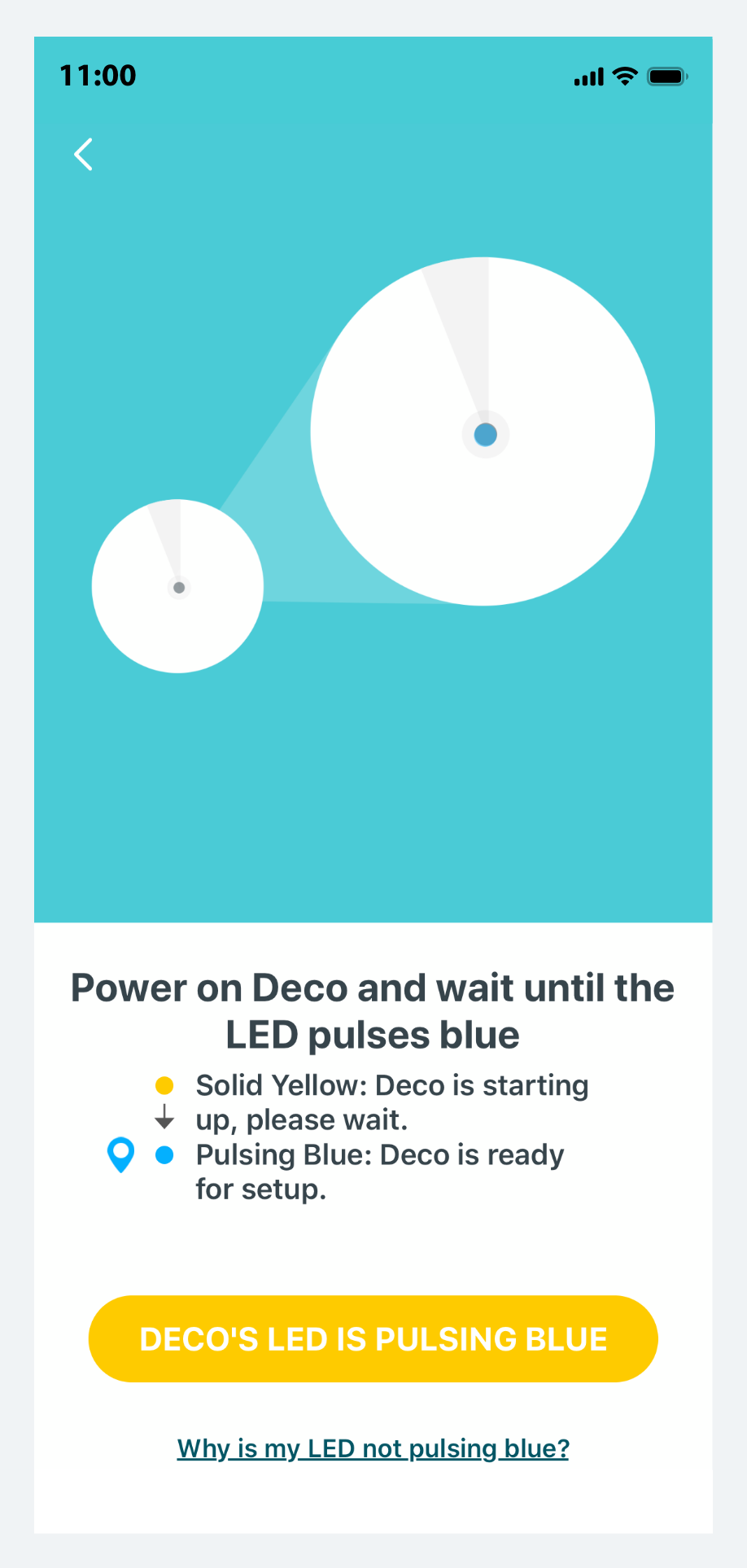

Once the Ethernet ports on ONT & Deco have been connected, wait for the LED on Deco to change to Solid Blue light.
8. Connecting to Bluetooth
If you connect from your mobile device to bluetooth, it will search for your Deco device.
